ER-Diagram of the InnoDB Data Dictionary

Taxonomy upgrade extras:

With the new MySQL 5.6 release there are some more InnoDB Data Dictionary Tables in the INFORMATION_SCHEMA:

New with MySQL 5.5 are:

INNODB_CMP
INNODB_CMP_RESET
INNODB_CMPMEM
INNODB_CMPMEM_RESET
INNODB_TRX
INNODB_LOCK_WAITS
INNODB_LOCKS

New with MySQL 5.6 are:

INNODB_BUFFER_PAGE
INNODB_BUFFER_PAGE_LRU
INNODB_BUFFER_POOL_STATS
INNODB_FT_CONFIG
INNODB_FT_DELETED
INNODB_FT_DEFAULT_STOPWORD
INNODB_FT_INDEX_CACHE
INNODB_FT_BEING_DELETED
INNODB_FT_INDEX_TABLE
INNODB_FT_INSERTED
INNODB_METRICS
INNODB_SYS_COLUMNS
INNODB_SYS_FIELDS
INNODB_SYS_FOREIGN
INNODB_SYS_FOREIGN_COLS
INNODB_SYS_INDEXES
INNODB_SYS_TABLES
INNODB_SYS_TABLESTATS

The INNODB_SYS tables where already available before but not accessible via SQL. You could see them by enabling the InnoDB Table Monitor.

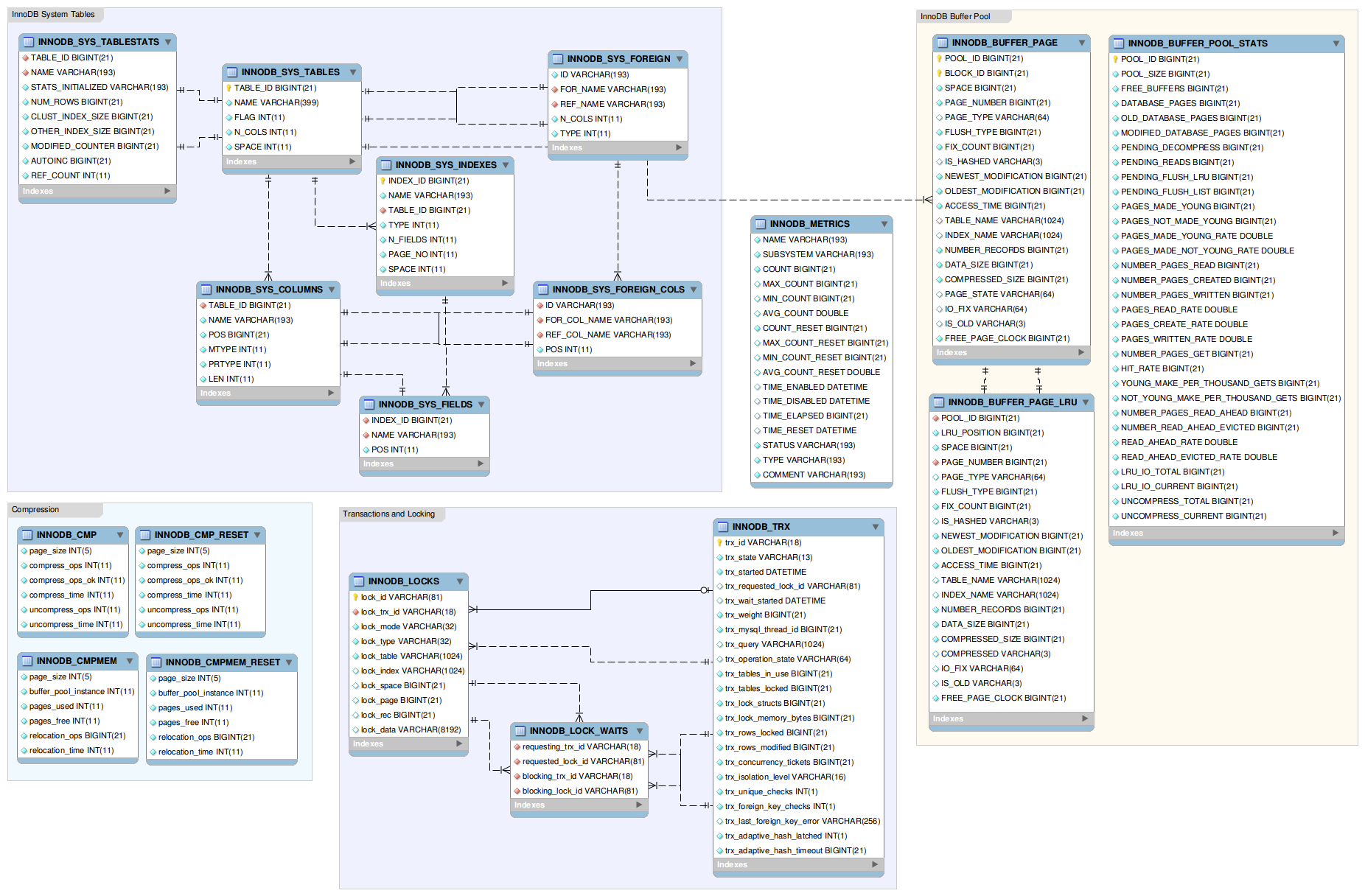

To get a rough overview how they are related to each other we have reverse engineered the ER Diagram of the InnoDB Data Dictionary. Please let us know when you see any error or if something is missing...

Have fun!

Oli

innodb_dd.pdf (PDF: 93k)
